Mar. 04, 2019
Inflatable tents belong to the tent of a structural mechanics using the principle of design framework, the use of gas pressure characteristics of the balloon expansion to form a certain rigid cylinder, through the organic combination of the skeleton of the tent. Mainly used for moisture, water, wind, dust, sunscreen, disaster relief, field short-term training, field short-term operations.

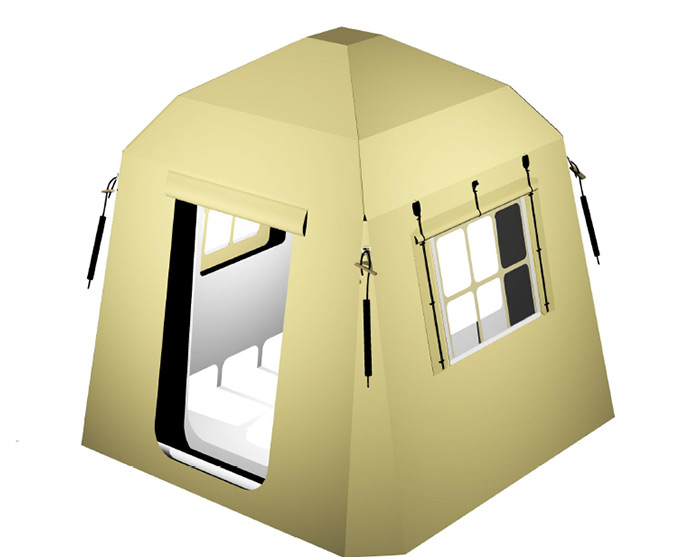

5㎡ Inflatable camping tent
5㎡ Inflatable camping tent's diagram
5㎡ Inflatable camping tent's tubes and size diagram
5㎡ Inflatable camping tent's technical indicators:
| 1) Size: 2.25 x 2.25 x 2.2m Max height:2.35m Protected area: 5㎡ |
| 2) Inner size:1.95 x 1.95 x 2.05m Max height:1.57m Protected area: 3.8㎡ |
| 3)Material of covering: sandy color PVC |
| 4)Basic module (tent): 0.7mm gray color PVC (diameter 150mm) |
| 5)Lining: white Shumei silk |
| 6)Floor: gray PVC |
| 7)Access doors x 2pcs : 800 x 1450mm (U-shaped) |
| 8)Windows x 2pcs: 695 x 615mm |
| 9) Installed vale (1 pcs fill-discharge valve under the door) |
| 10) Main structure using high frequency welding technique. |
| 11) Working pressure: 18~22Kpa |
| 12)The base module (tent) withstand wind: 75km/h |
| 13)Anti surface water: 160-200mm |
| 14) Adaptive temperature: -30 Celsius~ +70Celsius |
| 15) Inflation time: 2-3 min |
| 16) Weight: 45KG |
| 17) Packed size: 0.8*0.7*0.6m |
| 18)Package: strong PVC bag+ big handles for convenient carry. |
Photos reference:
1) Features
A. Technique
Combining adhesive bonding and high-frequency welding to produce,using double-sided coated PVC tarpaulin for the based module tent,the covering is waterproof, anti-ultraviolet materials, with fast forming, high strength, anti-fire, mildew, anti-ultraviolet, moisture and other advantages.Tent is inflatable tent, tent's structure is gas column, compared with the general metal bracket tent, with the characters of lighter, small size after folding, easy to carry and so on.
B. Installment
Inflatable tent's erection is very convenient, firstly,choosing a flat ground , then open the package and flat to the ground,with inflatable pump or foot pump began to inflate, pulled the rope to prevent the focus can not stand upright.Finally,fix the anchors and tightened wind ropes.
C. Demolition
Natural deflated or electric pump to exhaust air.
2) Install Caution
A. In the mud or sandy ground to install, you can dig drain around the tent to ensure the ground's floor dry.
B. If you want to cook around the tent, be sure to let the flame away from the tarpaulin or fire board to isolate the flame, cooked people can not leave tents, usually do the fire plan and install the exhaust fan to remove fumes.
C. Predict the local wind more than eight or more, please remove the tent in advance to avoid unnecessary losses.
D. Tent must be stored before drying tarpaulins, to be restored after the dry and then folded, if too late to cool the tarpaulin,
remember that you can not keep a long time to avoid mildew.
E. According to the local humidity and climate conditions, regular drying tarpaulin, in order to avoid breeding bacteria, disaster relief tents rain coating was broken.
3) Repair
If you find a leak, you can wipe out the gas column firstly, then apply the surface with soapy water to check the leak gas point. If the leakage point is a small hole, you can use a small piece of rubber patch and then brush dispensing, to wait it dry after pasting on the leak, bonding tight.
If the leakage at the tube's welding seal points, can be divided into the following steps:
A. Firstly,clean up the bonding surface.
B. Using special glue we equipped with to paint in the pre-adhesive surface,it must be painted evenly and then bonding.
C. The shape of the mouth to be designed into a circular or oval, try to avoid the square and acute angle interface shape, lap width can not less than 30mm.
D. Until the glue volatilized, can be bonded, patch to be flat, no wrinkles, rolling, scraping, while electricity hair supply heat source for easy bonding. After 6 hours of bonding can be inflated again to use.
